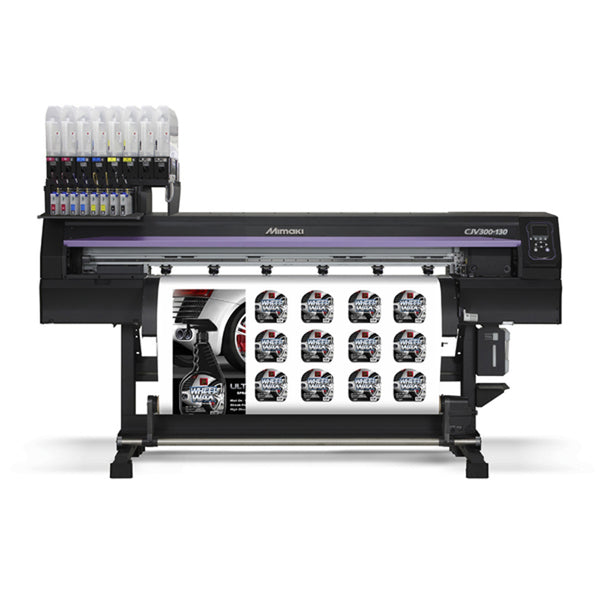

Mimaki CJV300 Series

Mimaki CJV300 Series wide-format, high-speed eco-solvent printer/cutter devices go beyond extraordinary to deliver an amazing array of applications. Eco solvent inks in a variety of colors – including Silver – and advanced printing technologies means you can produce anything from fine art reproductions to outdoor signage. And, with precision cutting capability on board you can go beyond posters and banners to deliver complete campaigns that include prints for small or large labels, decals and even T-shirt transfers. Employing the Mimaki CJV300 Series printers’ superb quality, color fidelity, throughput and contour cutting then printing flexibility, you’ll go beyond the expected to capture more wallet share and deliver whatever your customers can imagine.

Mimaki CJV300 Series wide-format, high-speed eco-solvent printer/cutter devices go beyond extraordinary to deliver an amazing array of applications. Eco solvent inks in a variety of colors – including Silver – and advanced printing technologies means you can produce anything from fine art reproductions to outdoor signage. And, with precision cutting capability on board you can go beyond posters and banners to deliver complete campaigns that include prints for small or large labels, decals and even T-shirt transfers. Employing the Mimaki CJV300 Series printers’ superb quality, color fidelity, throughput and contour cutting then printing flexibility, you’ll go beyond the expected to capture more wallet share and deliver whatever your customers can imagine.

Go Beyond Conventional with the Mimaki CJV300

• Fast printing speeds up to 1140 SqFt (105.9 SqM) per hour



• Cut and print capability on one unit



• High quality print resolution of up to 1,440 dpi



• Two model widths: 54-inch (1361 mm) and 64-inch (1610 mm)



• Choice of eco solvent or dye sublimation ink sets:





  • Eco solvent: 10 color options including Silver, White, Orange and Light Black inks



  • Dye sublimation: vibrant 6 color dye sub options









• 2-liter bulk ink system standard for most colors



• Nozzle Check Unit and Nozzle Recovery System



• 3-way intelligent heater

Highlights of the Mimaki CJV300 Series

Economical Bulk Ink System

The CJV300 Series printers are equipped with the MBIS3 (Mimaki Bulk Ink System 3) featuring economical, high-capacity 2L ink packs. The new design saves space by fitting on top of the cartridge ink station. It’s the perfect solution for long running jobs.

---

Cut and Print Capability

The ability to pre-cut before printing prevents common problems such as film separation and other issues related to post-cutting on thin materials.

Eco Solvent or Dye Sublimation

The CJV300 Series can be configured for either eco solvent printing for sign and graphics applications or for dye-sublimation printing for textile and apparel transfer sublimation applications.

---

Expanded Eco Solvent Ink Set with Silver

The SS21 eco solvent ink set includes ten colors including Silver, which can be used to create metallic color effects for labels, decals and package prototyping jobs.

---

Precision Ink Drop Placement

Mimaki designed an optimum waveform enabling the print head to jet each ink color at the appropriate jetting angle without losing precise ink droplet circularity.

---

Anti-Banding Technology

Variable drop printing combined with MAPS3 (Mimaki Advanced Pass System 3) technology ensures precise and accurate print quality throughout the printing process, greatly reducing the appearance of banding and resulting in a smoother image.

---

Uniform Media Drying

A Mimaki-patented, three-way intelligent heating system results in uniform ink drying across the width of the printer, assuring even image quality.

• Pre-heater: Heats media to the optimum temperature before printing.



• Print heater: Dries ink after it lands on media before it bleeds, improving color development.



• Post-heater: Enhances ink drying and achieves stable take-up.



• Top blower: Air blower supports drying of ink.

Applications of CJV300 Series

With eco solvent inks:

• Signage



• Vehicle graphics



• Point-of-purchase displays



• Banners



• Posters



• Exhibition graphics



• Window clings



• and more…

With dye sublimation inks:

• Flags



• Fashion & Sportswear



• Promotional



• Exhibition soft signage



• T-shirt transfers



• and more…

With on-board cutting:

• Labels



• Decals



• Vehicle markings



• Apparel transfers



• and more…

Technical overview of the Mimaki CJV300 Series

Print system	On-demand piezo, two staggered print heads per color 8 channels for a variety of ink configurations
Max print width	CJV300-130: 53.5 inches (1361 mm) CJV300-160: 63.3 inches (1610 mm)
Print resolutions	300, 540, 720, 1080, 1440 dpi
Max print speed	CJV300-130: 991 SqFt/Hr (92.1 SqM/Hr) CJV300-160: 1140 SqFt/Hr (105.9 SqM/Hr)
Ink type	Mimaki SS21 Eco-Solvent ink: C, M, Y, K, Lc, Lm, Lk, Or, W, Si Mimaki ES3 Eco-Solvent ink: C, M, Y, K, Lc, Lm, W Mimaki Sb54 Dye Sublimation ink: Bl, M, Y, K, Lbl, Lm
Ink capacity	2-liter bulk ink system standard for most colors 440ml cartridges available for most colors 220ml cartridges only for Silver and White ink
Max media width	CJV300-130: 53.9 inches (1371 mm) CJV300-160: 63.7 inches (1620 mm)
Max roll weight	88 Lbs. (40kg)
Max media thickness	1.0 mm
Operational environment	Temp: 59? – 86? F (15? – 30? C) 35-65% RH (non-condensing)
Connectivity	USB 2.0
Outside dimension	CJV300-130: 99?(W) × 28? (D) × 55?(H) (2,525mm × 700mm × 1,392mm) CJV300-160: 109?(W) × 28?(D) × 55?(H)(2,775mm x 700mm) × 1,392mm)
Power supply	Single-phase AC 100-120V (AC 220-240V) x2
Dimensions (W x D x H)	CJV300-130: 99 x 28 x 71 inches (251 x 71 x 180 cm) CJV300-160: 109 x 28 x 71 inches (277 x 71 x 180 cm)
Weight	CJV300-130: 368 lbs. (166.9 kg) CJV300-160: 392 lbs. (177.8 kg)

Ink for the Mimaki CJV300 Series

Eco Solvent ink (SS21)	Cyan	Magenta	Yellow	Black	Light Cyan	Light Magenta	Light Black	Orange	White	Silver
2L MBIS Pack*	SPC-0588C	SPC-0588M	SPC-0588Y	SPC-0588K	SPC-0588LC	SPC-0588LM	SPC-0588LK	SPC-0588OR
440ml cartridge	SPC-0501C	SPC-0501M	SPC-0501Y	SPC-0501K	SPC-0501LC	SPC-0501LM	SPC-0501LK	SPC-0501OR
220ml cartridge									SPC-0504W-2	SPC-0504Si

Eco Solvent ink (ES3)	Cyan	Magenta	Yellow	Black	Light Cyan	Light Magenta	Light Black	Orange	White	Silver
440ml cartridge	SPC-0440C	SPC-0440M	SPC-0440Y	SPC-0440K	SPC-0440LC	SPC-0440LM
220ml cartridge									SPC-0433W-2
